Wireless 4G GSM Temperature Transmitter RTD Sensor with GPS for Oil Liquid & Water Temperature Monitoring

Delivery Time : 5- 8 working days

Range : -50℃~650℃

Model Number : TP2402VL.5-Ex

Communcation : 4G

Supply Ability : 100 pieces per day

Probe size : Customized as your demand

Material : Housing part Aluminum alloy Probe part SS304

Payment Terms : L/C,D/A,D/P,Western Union,T/T,

Accuracy : 0.5% F.S

Color : Yellow

MOQ : 1 piece

Packaging Details : packed in paper carton

Thread connection : NPT1/2

Warranty : 12 months

Certification : CE ROHS Explosion proof

Place of Origin : China

OEM : Available

keyword : Temperature transmitter

Brand Name : OEM

Protocol : MQTT

Contact Now

Wireless 4G GSM Temperature Transmitter RTD Sensor with GPS for Oil Liquid & Water Temperature Monitoring

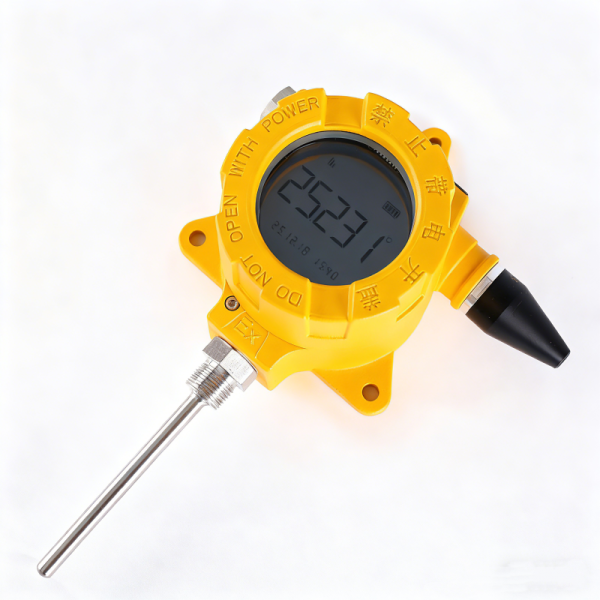

The TP2402 wireless thermometer is a battery-powered, low-power IoT temperature monitoring device designed for long-term and reliable operation. Supporting multiple communication options including 4G and Wi-Fi, it enables stable connection with remote monitoring platforms for real-time temperature data transmission. The device allows easy parameter configuration through the USB interface and supports secure data export in PDF and CSV formats for convenient reporting and complete data traceability. With intelligent over-limit alarm functionality, the TP2402 instantly uploads data and sends alerts when temperature values exceed preset thresholds. Combined with manual sensor calibration, it ensures accurate and consistent temperature measurement, helping users achieve efficient remote temperature monitoring and better visibility of equipment and environmental conditions.

Range	-200℃~200℃
Accuracy	0.5%F.S
Battery Capacity	19000mAh non rechargeable lithium battery
Protection Level	IP68
Display	TFT
Power Consumption	Standby current ≤80uA, average data transmission current ≤150mA1
Communication	4G,WiFi,LoRaWAN,LoRa,NB-IoT
Antenna	External
Installation	Vertical,Horizontal
Sampling Interval Time	10 sec~2550 sec
Uploaded Interval Time	1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery
Configuration	USB C,Bluetooth
Wake-up Mode	Button,timing
Uploaded Data Information	Temperature, Battery Level, Signal, SIM card
Material	Housing part Aluminum alloy, Sensor part: SS304
Process connection	NPT1/2,M20*1.5,BSP1/2 ect..

Advantage

Wireless stable connection, cloud data sync
USB local config & export, easy operation
PDF/CSV dual formats, easy data traceability
Instant over-limit upload, timely alarm
Sensor value calibration, sustained accuracy
Wireless flexible deployment, multi-scenario fit

Temperature transmitters are widely used in large industries where temperature sensors are used including:

Aerospace
Chemical
Food and beverage
Energy
Air conditioning
Metal plating
Mining
Oil and Gas
Petrochemical
Waste and water management
